Add Material to nk Database

Importing Libraries

Importing visualize_material_properties and add_material_to_nk_database function from tmmax.data is sufficient for data visualizations.

import jax.numpy as jnp
from jax import jit
from tmmax.data import add_material_to_nk_database, visualize_material_properties

Creating Dummy n, k Data Generator Function

Here, I created a function that generates n and k data for a dummy material. In your case, this is not necessary—you can directly use your own n and k data.

@jit
def dummy_material_n_k(wavelength_um):
    """
    Calculate refractive index and extinction coefficient for dummy material

    Args:
        wavelength_um: Wavelength in micrometers (1.5-1.6 um range)

    Returns:
        n: Refractive index
        k: Extinction coefficient
    """
    # Create a fake wavelength-dependent refractive index with some features
    n_base = 3.2
    n_peak = 0.15 * jnp.exp(-((wavelength_um - 1.55) / 0.02)**2)
    n = n_base + n_peak

    # Create a fake wavelength-dependent extinction coefficient
    k_base = 0.001
    k_peak = 0.0005 * jnp.exp(-((wavelength_um - 1.53) / 0.03)**2)
    k = k_base + k_peak

    return n, k

Creating dummy_n and dummy_k data arrays.

dummy_wavelengths = jnp.linspace(1.5, 1.6, 100)
dummy_n, dummy_k = dummy_material_n_k(dummy_wavelengths)

Adding Materials to the Database

The following line adds a new material named 'dummy_material' to the internal n-k database. It takes four arguments:

• wavelength_arr: an array of wavelength values,

• refractive_index_arr: an array representing the real part of the refractive index (n),

• extinction_coeff_arr: an array representing the imaginary part (k),

• material_name: the name of the material to be added.

In this example, dummy data (dummy_wavelengths, dummy_n, and dummy_k) is used to simulate a material entry. In practice, you can replace these arrays with your actual n and k data.

add_material_to_nk_database(wavelength_arr = dummy_wavelengths,
                            refractive_index_arr = dummy_n,
                            extinction_coeff_arr = dummy_k,
                            material_name='dummy_material')

'dummy_material.csv' recreated successfully.

Plotting the Material Data

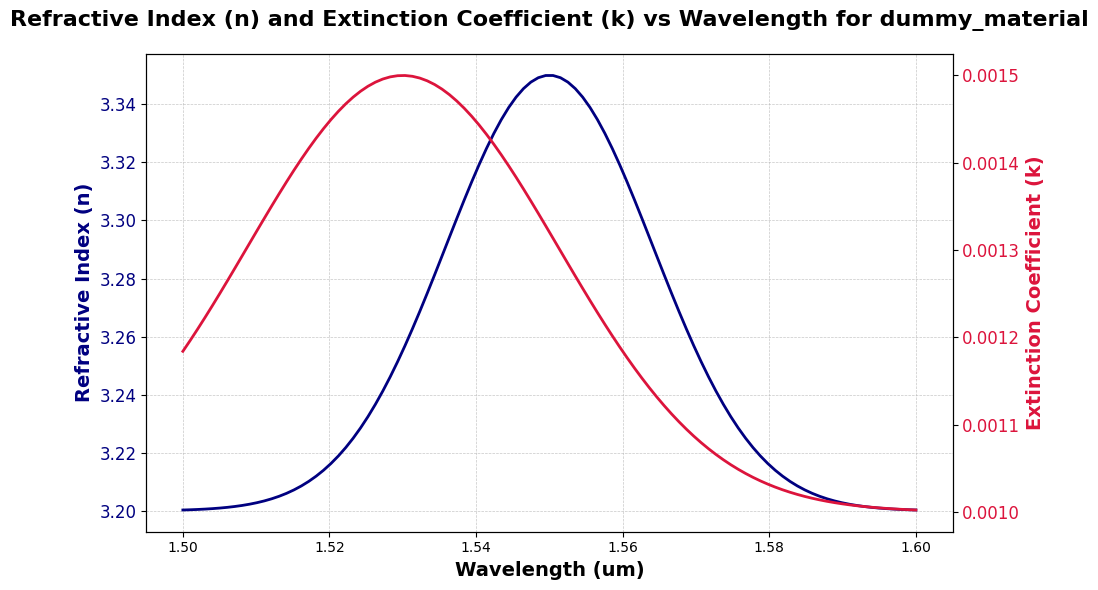

You can directly plot the materials you’ve added to the database using visualize_material_properties.

visualize_material_properties(material_name = "dummy_material")
